MX08 Multichannel System
Baykon MX08 is a Multichannel Transmitter is Designed to Integrate Analog Measuring Data of Multi Weighing, Force or Torque Measuring Systems Into Control PLC/PC in Proper Digital Data Format. MX08 family is programmed and calibrated via pc By Baykon xFace Software. MX08 main advantages are; fast conversion rate, fast response and anti-vibration adaptive digital filter, weighing functions, powerful calibration facilities including eCal, calibration without test weight.
Fully matched production provides direct replacement without calibration in count mode. The maximum configuration is; fieldbus gateway, up to 8 analog digitizer, 8 digital I/O units, local display unit. DIN rail installation provides easy montage.
Highlights
Measurement Type
Weight Measurement, Force Measurement, Pressure Measurement, High Resolution A/D Value
Applications
Dynamic Weighing, Tank Weighing, Silo Weighing, Yacht - Ship Weighing, Force Measurement, Dosing Systems
Protection Class
IP20
Type of Device
DIN-Rail
Serial Communication
RS232, RS485, Modbus RTU
Industrial Communication
Modbus TCP, Ethernet TCP/IP, Profinet, Profibus, EtherCAT, EtherNet/IP, Powerlink
Web/PC Access
Configuration by App
Digital Input & Output
Input, Output
Energy Supply
12VDC, 24VDC
Other Features
eCal, sCal
Functional Features
- Communication: RS-232C, RS-485, Ethernet TCP/IP, Profibus, Modbus RTU, Modbus TCP, Profinet,EtherNet/IP, EtherCAT, Powerlink
- High Speed: Up to 800 conv/sec.
- Anti-Vibration Filter: Adaptive antivibration active filter for fastand stable reading.
- Weighing Functions: Taring, zeroing, AZT, power on zero, tare memory at power off, motion detection.
- eCal: Electronic calibration without test weights
- Software Support: Windows based BAYKON xFace software for calibration and setup via PC
- Matched Production: Direct replacement in Count mode without calibration
- Local Display: Easy service and local indication in site.
- Digital I/O: Digital I/O's directly controlled by master PLC.

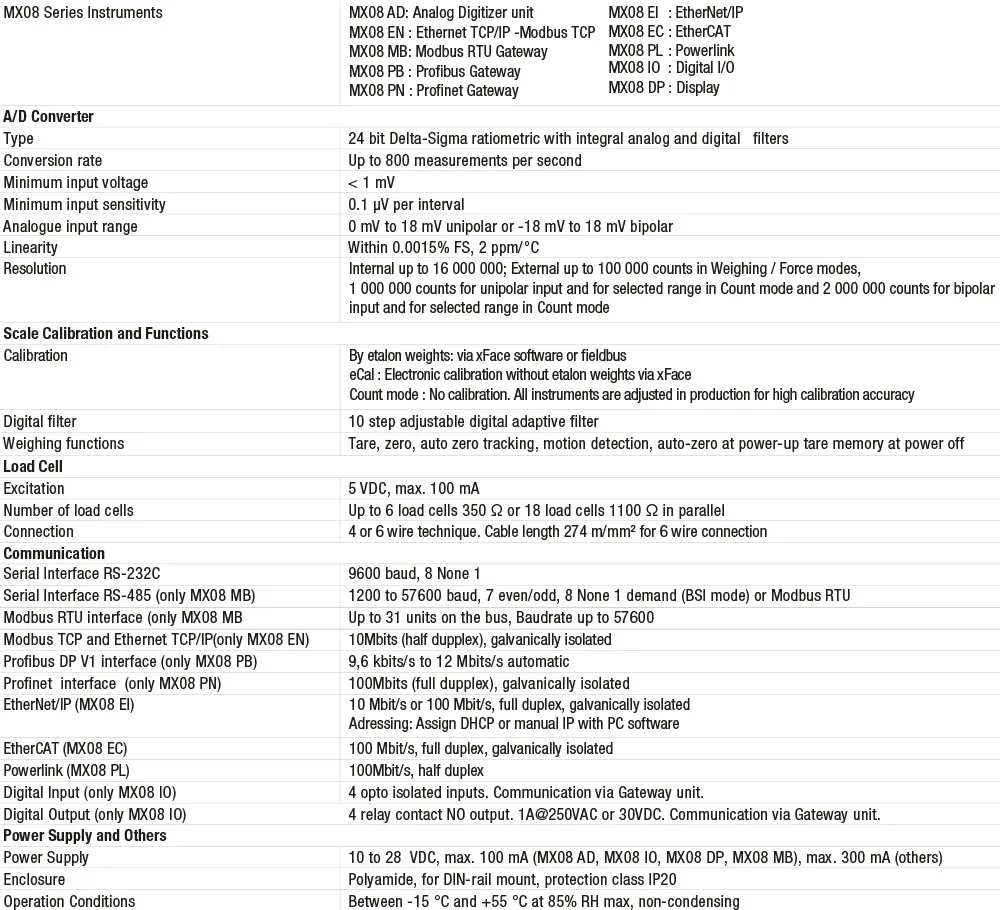

Technical Specifications
MX08 Multichannel System
Technical Specifications

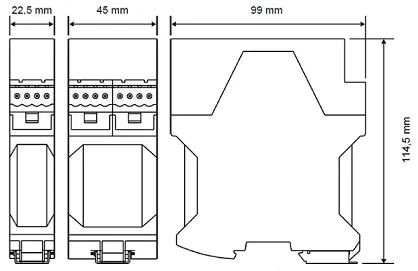

Dimensions
Documents
Name
Version
Description
Category
Data Type
MX08 Multichannel System Catalogue
Product Catalogs
MX08 Technical Manual
Technical manual
Software
Name
Version
Description
Category
Data Type
PLC Support Software Files
Software
EthernetX File
Software
GSD (Profibus)
Software
GSDML (Profinet 1Port)
Software
GSDML (Profinet 2Port)
Software
EDS (EtherNet/IP)
Software
ESI (EtherCAT)
Software
XDD (Powerlink)
Software
xFace PC Software
Software
