TX20 Digital Transmitter
TX20 series digital transmitters are designed for static and dynamic weighing systems consisting of analog load cells, as well as for force, moment, and pressure measurement processes.
TX20 transfers precise measurement information acquired at a high speed and accuracy to your PLC / SCADA / PC system, can be easily programmed via its alphanumeric display, and can also be directly integrated into Profinet Redundant S2 systems.For applications requiring high operating temperatures, the TX20H variant is available.
TX20 transmitters with dual-port Ethernet output can be connected to each other in a daisy-chain topology on the data line. As the TX20 transmitters are individually adjusted and matched to each other during production, they can be replaced in counting mode without the need for any additional adjustment.
Highlights
Measurement Type
Weight Measurement, Force Measurement, Pressure Measurement, High Resolution A/D Value
Applications
Basic Weighing, Totalization, Dynamic Weighing, Tank Weighing, Silo Weighing, Yacht - Ship Weighing, Basic Peak-Hold, Capture of Weight (HOLD), Tensile and Compressive Tests, Strength Measurement, Process Control, Force Measurement, Dosing Systems
Protection Class
IP20
Type of Device
DIN-Rail
Serial Communication
Analogue Output, RS485, USB, Modbus RTU
Industrial Communication
Modbus TCP, Ethernet TCP/IP, Profinet, Profinet S2, Profibus, EtherCAT, EtherNet/IP, CANopen, Powerlink, CC-Link, CC-Link IE Field
Web/PC Access
Configuration by App
Digital Input & Output
Input, Output
Energy Supply
12VDC, 24VDC
Other Features
eCal, sCal, Multi-point adjustment
Functional Features
- One billion internal resolution, One million data output resolution
- The effect of electronic calibration on weighing error is less than 0.003%.
- All Ethernet output products are dual-port for daisy chain connection
- Variant with direct connection to Profinet S2 System Redundancy
- High reliability with triple signal isolation
- Programming and calibration via Fieldbus
- Vibration filter: Stable reading for agitated tanks and vibrating environments
- Remote programming via web page (EN variant)
- Logging of device interventions and system failures
- TX20H variant: Operating temperature -15°C ... + 85°C

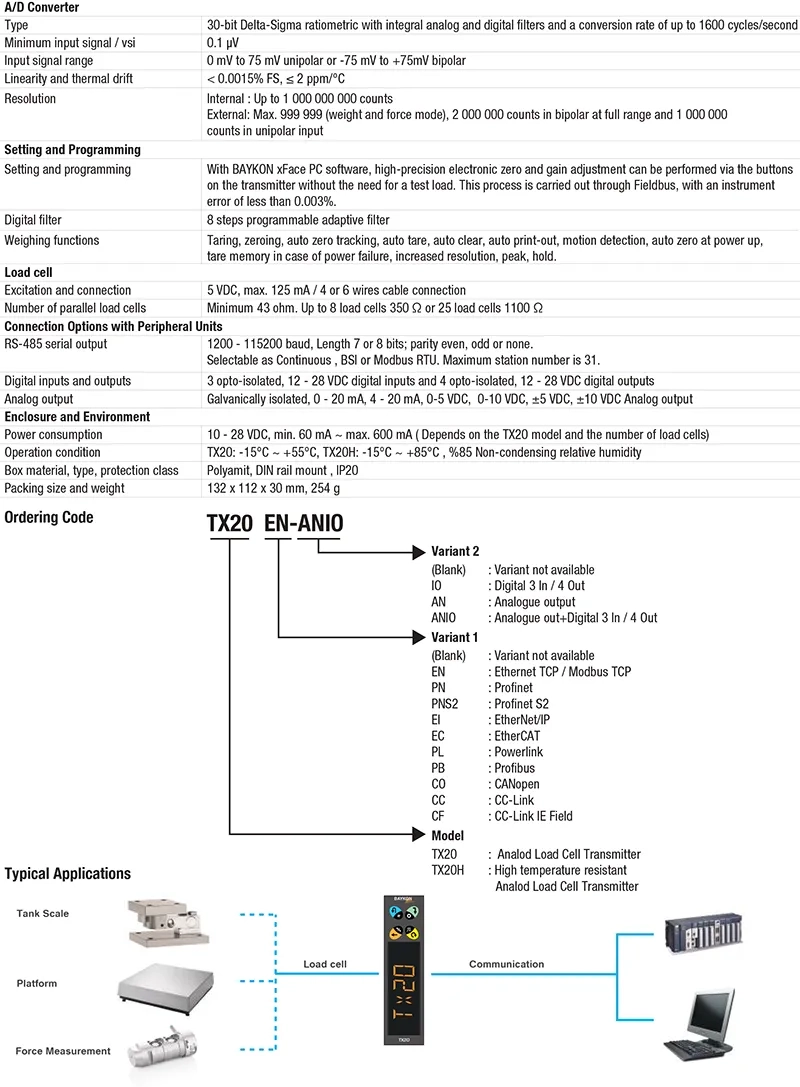

Technical Specifications
