BX18 Weighing Indicator
BAYKON BX18 is a process weighing indicator designed for DIN rail mounting, featuring an LED display. It can be easily installed in a cabinet for use in intensive dusty environments. As standard, it is equipped with RS232C, RS-485, Modbus RTU Fieldbus, programmable 4-20 mA, 0-20 mA, 0-5 VDC, or 0-10 VDC analogue output, and digital I/O with programmable 4 inputs and 6 relay contact outputs. With these features, it provides strong integration options with PLC/DCS or PC.
BX18 offers powerful calibration options, including electronic calibration without test weights and span calibration of non-empty tanks, that make installation and servicing quick and easy. It features 10-step adaptive filters for fast settling, up to 999.999 display resolution, 1600 conversions per second, and a 14mm LED display that is easily readable from a distance in any environment.
Programming and calibration can be performed using the keys or through serial ports with the Modbus protocol. The BX18 is powered by a 12-28 volt DC power supply.
Highlights
Measurement Type
Weight Measurement, High Resolution A/D Value
Applications
Basic Weighing, Totalization, Tank Weighing, Basic Peak-Hold, Capture of Weight (HOLD)
Protection Class
IP20
Type of Device
DIN-Rail
Serial Communication
Analogue Output, RS232, RS485, Modbus RTU
Digital Input & Output
Input, Output
Energy Supply
12VDC, 24VDC
Other Features
eCal, sCal, Multi-point adjustment
Functional Features
Features
• 14mm LED display
• Up to 1600 convertion/sec
• Calibration via keys and by PC/PLC through interfaces
• Electronic calibration (eCAL) without test weights
• Span calibration (sCAL) of non-empty tanks.
System integration
• RS-232C serial port
• RS-485 serial port
• Modbus RTU
• Analog selectable as 0-20mA, 4-20mA, 0-5 VDC and 10 VDC
• Parallel I/O port as 4 x inputs and 6 x outputs

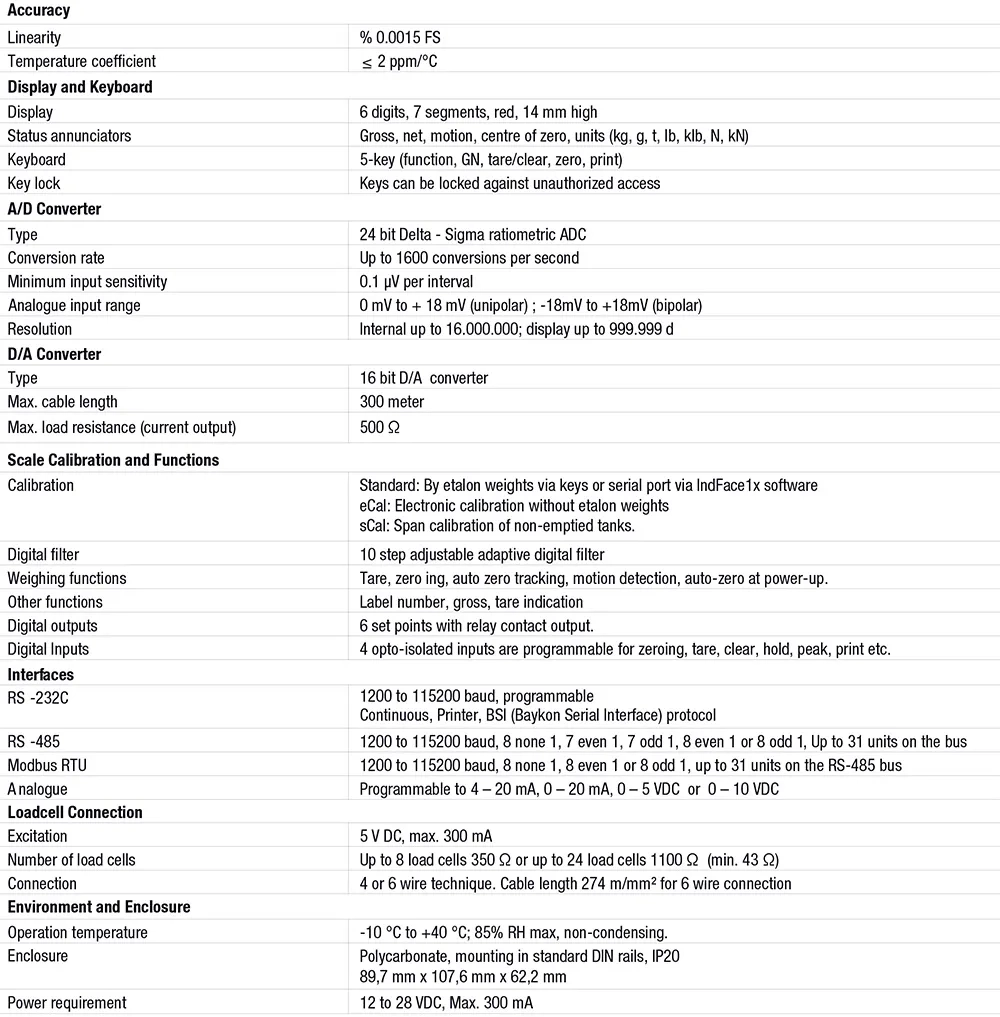

Technical Specifications
BX18 Weighing Indicator
Technical Specifications

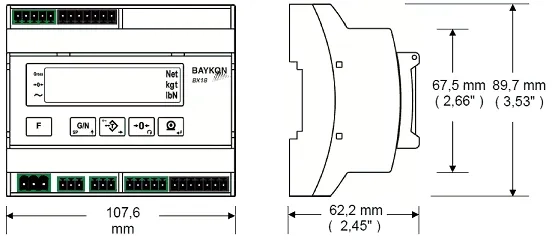

Dimensions
