TX20D Digital Transmitter
TX20D digital transmitters are extremely accurate and reliable measuring devices designed for static and dynamic weighing processes consisting of digital load cells.
Since TX20D communicates with digital load cells individually, it instantly detects any fault in the system and alerts the operator. Its intelligent embeded firmware allows production to continue in the event of any digital load cell failure.
TX20D transfers reliable measurement info to your PLC/SCADA/PC system accurately and at high speed. Dual Ethernet port products provide the connection to the data line in a daisy chain configuration.
TX20D can be easily programmed via the keys under the guidance of the alphanumeric display.
Highlights
Measurement Type
Weight Measurement, Force Measurement
Applications
Basic Weighing, Totalization, Dynamic Weighing, Tank Weighing, Silo Weighing, Yacht - Ship Weighing, Capture of Weight (HOLD), Tensile and Compressive Tests, Strength Measurement, Process Control, Force Measurement, Dosing Systems
Protection Class
IP20
Type of Device
DIN-Rail
Serial Communication
Analogue Output, RS485, USB, Modbus RTU
Industrial Communication
Modbus TCP, Ethernet TCP/IP, Profinet, Profinet S2, Profibus, EtherCAT, EtherNet/IP, CANopen, Powerlink, CC-Link, CC-Link IE Field
Web/PC Access
Configuration by App
Digital Input & Output
Input, Output
Energy Supply
12VDC
Other Features
eCal, sCal, Multi-point adjustment
Functional Features
- Much more reliable weighing with digital load cells.
- It prevents faulty production by alerting the operator in the event of load cell malfunction.
- Even in the event of a load cell failure, production can continue with a weighing error of up to 0.1% in liquids
- High reliability with triple isolation,
- All Ethernet interface products feature dual ports for daisy-chain connection,
- Programming and calibration via PLC or PC,
- Remote programming via Web page (EN variant),

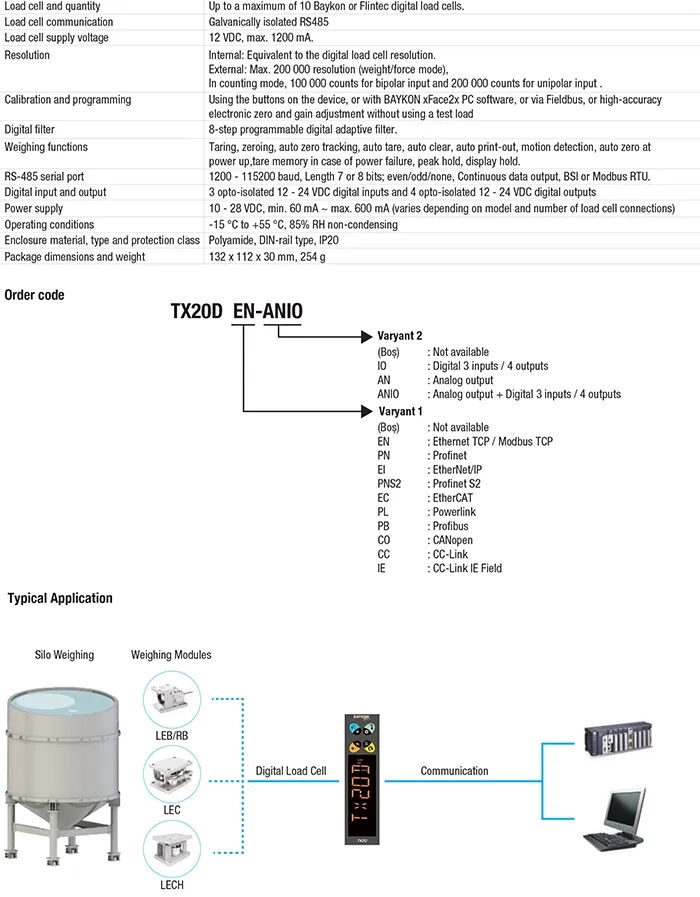

Technical Specifications
TX20D Digital Transmitter
Technical Specifications
