Converteur de Bluetooth BBT01 RS232
BAYKON model BBT01 is a long range class 1, Bluetooth® 2.1 / RS232 Serial module. BBT01 is a highly integrated and sophisticated Bluetooth® module, containing all the necessary elements from Bluetooth® radio and a fully implemented protocol stack.
Therefore BBT01 provides an ideal solution for developers who want to integrate Bluetooth® wireless technology into their design with limited knowledge of Bluetooth® and RF technologies.
BBT01 is optimized for long range applications is available with an integrated chip antenna, an RF pin for a custom on-board antenna or optional external 2dBi dipole antenna.
Points forts
Applications
Balances Pour Grues, Plates-formes mobiles ou balances de table, Transpalettes peseurs, Répétiteurs de poids, Systèmes de pesage spéciaux
Classe de protection
IP30
Communication sérielle
RS232
Communication sans fil
Bluetooth
Approvisionnement en énergie
6VDC, 28VDC

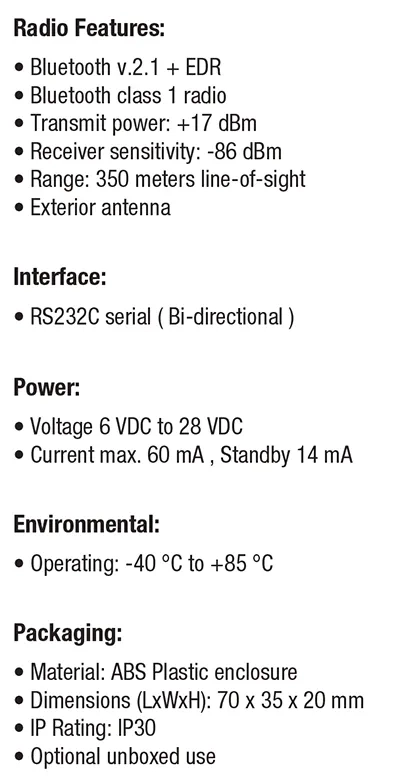

Spécifications techniques
Converteur de Bluetooth BBT01 RS232
Spécifications techniques
Documents
Nom
Version
Description
Catégorie
Type de données
Converteur de Bluetooth BBT01 RS232 Catalogue
Catalogues de Produits
