CSH Crane Scale
BAYKON CSH Crane Scale is a versatile and economical electronic weighing device suitable for use in cranes, traveling bridge cranes, or similar lifting systems. It is available in two variants with capacities of 10 and 20 tons.
The CSH crane scale consists of a Beam Type (double-ended) load cell, a BX11 electronic indicator for weight measurement, a ring for connecting to the crane hook, and a hook for lifting the load. The indicator is controlled via buttons on the unit or an infrared remote control. Optionally, the weighing result can be monitored via Bluetooth on an external display, an audible warning can be received when a load is lifted at a pre-set weight, and weighing data can be transferred via WiFi to a local network or a mobile device (tablet, smartphone, etc.).
With these features, the CSH crane scale is a practical, versatile, and economical solution for weighing applications in cranes or mobile cranes in various industries, particularly in the logistics sector.
Highlights
Applications
Crane Scales
Material
Static Painted
Trade Approval
Yes
Environment
Dry Environment (< IP65)
Protection Class
IP20
Functional Features
System integration
- Options for transferring weight data to any PC & PLC
- Ability to receive an audible signal warning at the limit value (Option)
Remote control
- Thanks to the ergonomic keypad, operations such as weighing, zeroing, turning on and off can be performed effortlessly.
- Compatibility with different types of ring and hook connections
WiFi connection
- Weighing data can be transferred via Wi-Fi to a local network or a mobile device (tablet, smartphone, etc.) (Optional)

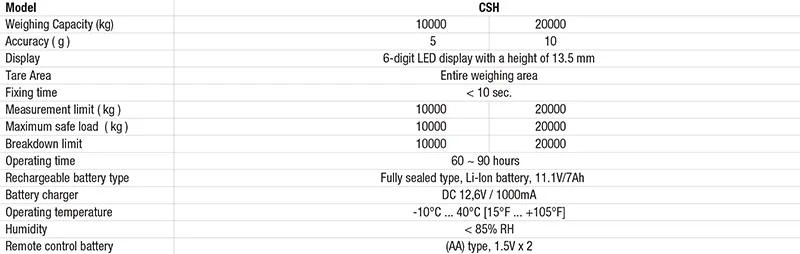

Technical Specifications
CSH Crane Scale
Technical Specifications

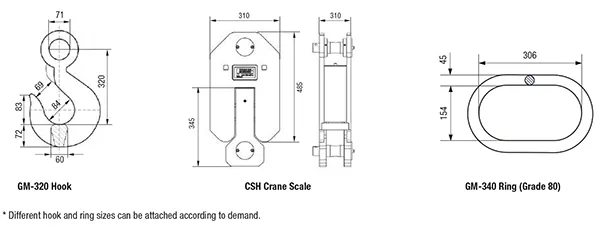

Dimensions
Documents
Name
Version
Description
Category
Data Type
CSH Crane Scale Catalogue
Product Catalogs
