BX13 Filling Controller
Baykon BX13 Filling Controller, is a Proffessional Filling Controller designed for any type of Filling Processes of liquid, Bulk and Granule Material with all types of packages.
With its 16.000.000 internal resolution, high speed with up to 1600 measurements per second, selectable standard digital and statistical filters, BX13 provides fast and accurate filling results in even harsh environments with vibrations. It has 4 standard filling modes for open container filling and above level bung hole filling; 1 mode for filling of materials which has high viscosity and 3 modes for packing machines. This controller has 4 opto-isolated digital inputs and 5 relay contact outputs, 2 none - isolated output. They are used for filling and disacharge processes.
Powerful calibration options including electronic calibration without test weights supports easy and fast start-up and service. BX13 has powerful PLC integration facilities; serial ports as RS-232C, RS-485 and fieldbus connections such as Ethernet TCP/IP, Modbus RTU/TCP, Profibus, Profinet, CANopen, EtherNet/IP, EtherCAT, CC-Link and Powerlink.
It's small size aluminium body provides perfect panel installation with its big display and with its small space need on control panels.
Highlights
Measurement Type
Weight Measurement
Applications
Simple Filling, Totalization, Tank Weighing, Silo Weighing, Liquid Filling, Packaging, Bagging, Tank Filling/Discharging, Process Control
Protection Class
IP67
Type of Device
Panel
Serial Communication
RS232, RS485, Modbus RTU
Industrial Communication
Modbus TCP, Ethernet TCP/IP, Profinet, Profinet S2, Profibus, EtherCAT, EtherNet/IP, CANopen, Powerlink, CC-Link
Web/PC Access
Configuration by App
Digital Input & Output
Input, Output
Energy Supply
12VDC, 24VDC
Certificate
OIML, MID
Trade Approval
Yes
Other Features
eCal, sCal, Multi-point adjustment
Functional Features
Advanced Technology
• 16.000.000 internal resolution
• Up to 1600 measurement values per second
• Display resolution up to 999.999 increment
• Easy control 4 Inputs and 7 Outputs
• Ergonomic design with small size
Filling Modes
• Liquid filling for open containers, filling under bung hole or at bottom filling
• “Weigh in and emptying” mode for automatic packing machines, bag fillers
• Filling and discharging for tanks or silos
External Programming
• Calibration is performed with or without test weights (eCal)
• Easy programming and calibration via RS-232C port by BAYKON “IndFace1x” software
• Calibration via PLC interfaces
System Integration
• RS-232C / RS 485
• Modbus RTU, Modbus TCP
• Ethernet TCP/IP, EtherNet/IP
• EtherCAT
• Profibus, Profinet
• CANopen
• CC-Link
• Powerlink

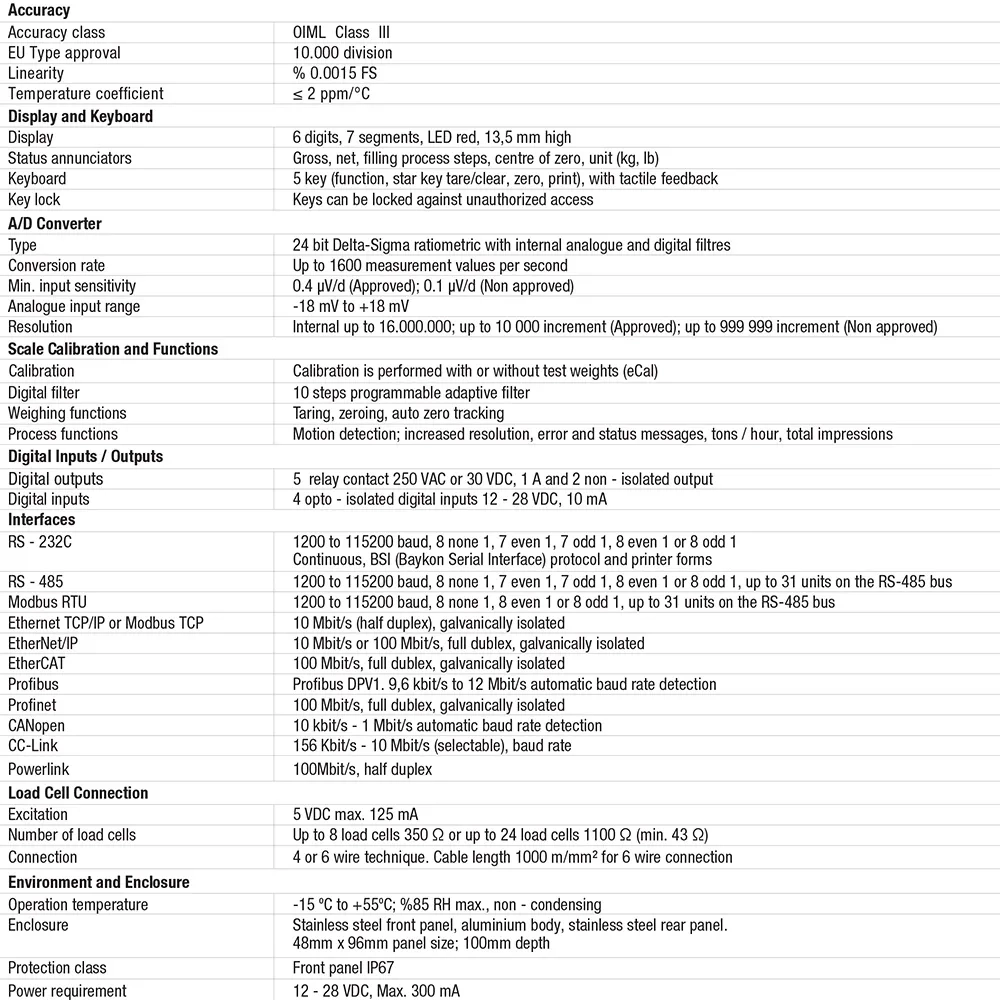

Technical Specifications
BX13 Filling Controller
Technical Specifications
Dimensions
Documents
Name
Version
Description
Category
Data Type
BX13 Filling Controller Catalogue
Product Catalogs
OIML Certificate Of Conf (BX1x)
Certificates
OIML Certificate Of Conf (BX13)
Certificates
BX13 User and Technical Manual
Technical manual
Software
Name
Version
Description
Category
Data Type
IndFace1x
v1.00
Software
B1n 3D File
Software
PLC Support Software Files
Software
EthernetX File
Software
GSD (Profibus)
Software
GSDML (Profinet 1Port)
Software
GSDML (Profinet 2Port)
Software
EDS (CANopen)
Software
EDS (EtherNet/IP)
Software
ESI (EtherCAT)
Software
XDD (Powerlink)
Software
GSDML (Profinet 2Port) S2 Redundancy
Software
